LCR Meter 100Hz~100KHz Digital Capacitance Resistance Inductance 0.1% Accuracy H15471

ET4410 LCR Meter is a component parameter analyzer based on the principle of automatic balancing bridge. Its 100Hz-100kHz test bandwidth, frequency continuous adjustable, 0.1% basic measurement accuracy and the file classification function provided by the instrument provide accurate and complete measurement and analysis for most components and materials, which are widely suitable. Used in product development, component inspection, product on-line inspection and other applications.

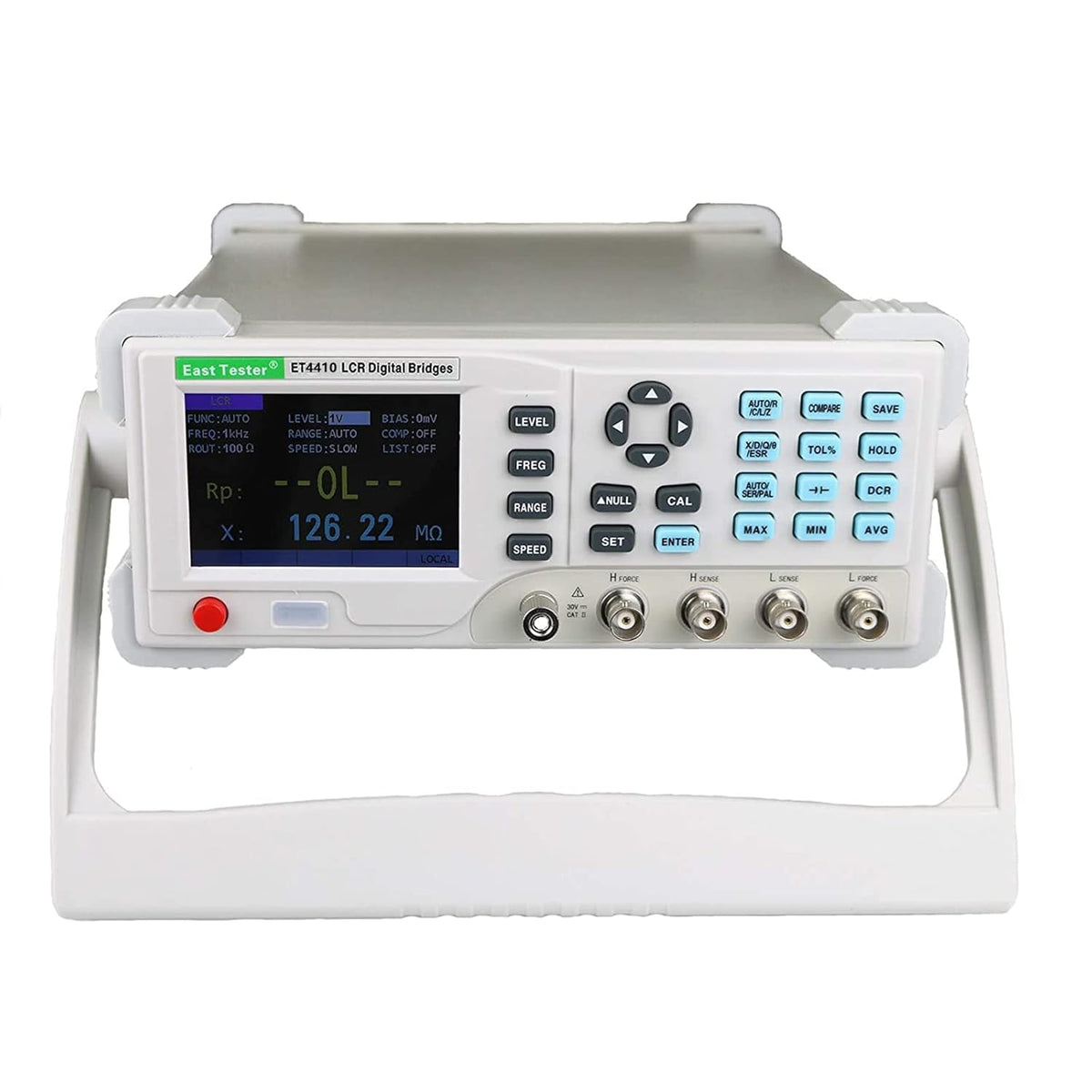

ET4410 LCR Meters

Testing frequency: 16 points (100, 120, 200, 400, 800, 1K, 2K, 4K, 8K, 10K, 15K, 20K, 40K, 50K, 80K, 100K)

Display screen: Display screen 3.5 inch TFT LCD

Number of display digits:Principal parameter: 5 digit，Secondary parameter: 5 digit

Measured parameter: Principal parameter: L/C/R/Z，Secondary parameter: X/D/Q/θ/ESR

Measurement Range: L：0.001μH～9999H; C：0.001pF～99.999mF; R：0.0001Ω～99.99MΩ

Basic accuracy:0.1%

Measuring display speed: 2 time/s (slow), 4 times/s (medium), 8 time/s (fast)

Internal bias: 0-1500mV adjustable, at a step of 1mV.

Testing level: Six fixed level(0.1V、0.3V、0.6V、1V、1.5V、2V)

Signal source output impedance: 30Ω、100Ω

Calibration function: Open circuit calibration, short circuit calibration

Screening function: The limit range of screening can be set to -50%～＋50%, and the fixed points are 1%, 5%, 10% and 20%.

Comparator: 5 groups sorting,3 groups of qualified setting, one group of unqualified setting, one group of auxiliary setting

Interfaces: standard: RS232, USB Device, Handler

Others: Support dc resistance (DCR), electrolytic capacitor measurement model,Adjustment of backlight brightness, Chinese and English are optional

Power Voltage: 110V AC+-10%, 45~65 Hz

Accessory:

Power Cord*1

Kelvin Test Probe*1
